Epoxy Fiberglass Cloth Insulation Tubes

Epoxy Fiberglass Cloth Insulation Tubes

short description:

G10 G11 FR4 Epoxy Fiberglass Cloth Insulation Tubes are made of alkali-free glass fabric cloth bonded with epoxy resin. It is laminated in rod mould under high temperature pressure. Electrical insulation tubes can also be produced by twine technology.

Besides the insulation tubes, we also produce the epoxy glass cloth laminated rods with different diameter and length.


Product Detail

Product Tags

G10 G11 FR4 Epoxy Fiberglass Cloth Insulation Tubes are made of alkali-free glass fabric cloth bonded with epoxy resin. It is laminated in rod mould under high temperature pressure. Electrical insulation tubes can also be produced by twine technology.

Besides the insulation tubes, we also produce the epoxy glass cloth laminated rods with different diameter and length.

Product features: Such products have excellent mechanical property and stable electrical property in high humidity.

Applications: suitable for being used as insulation structural parts in mechanical, electrical and electronic equipment.

EPGC tubes (2)
EPGC tubes (1)

Dimension For Epoxy Glass Cloth Rods

Rod diameter as per user’s requirement, length 1000mm.

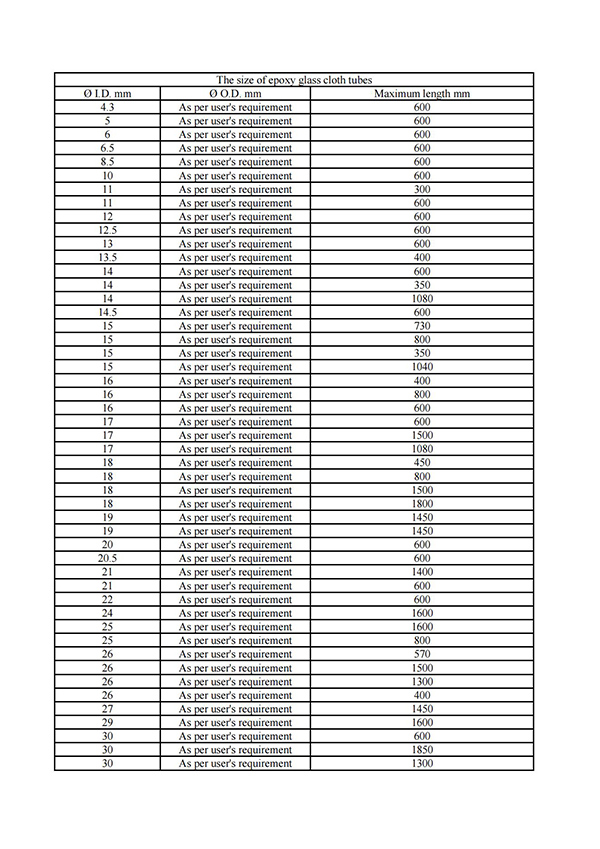

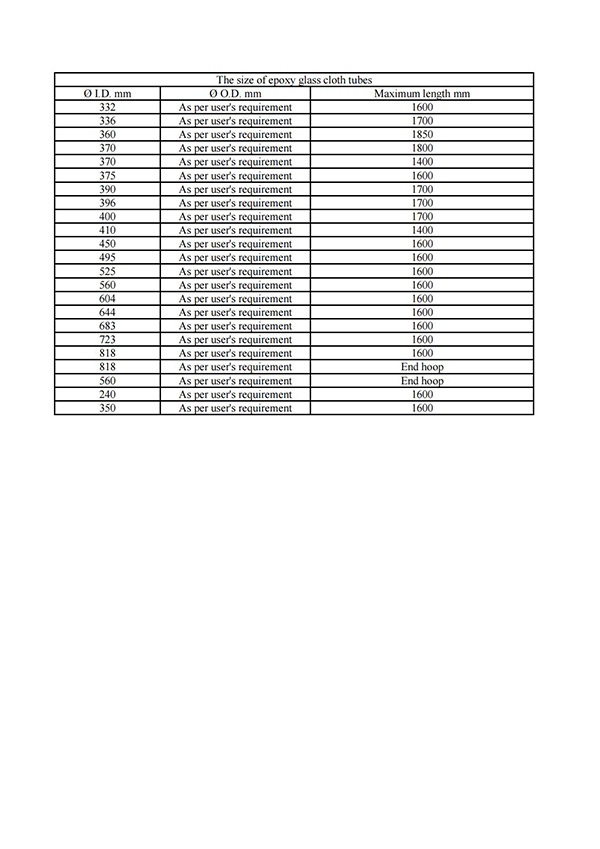

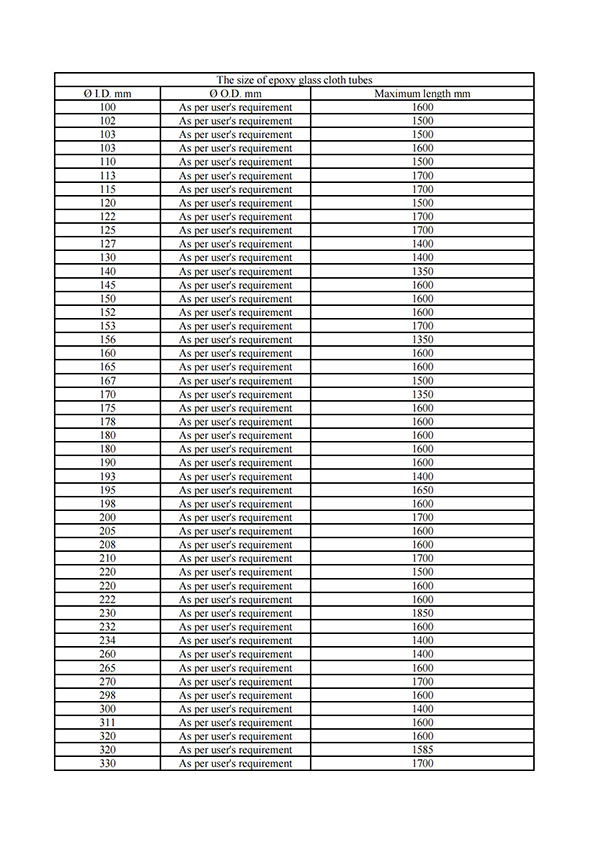

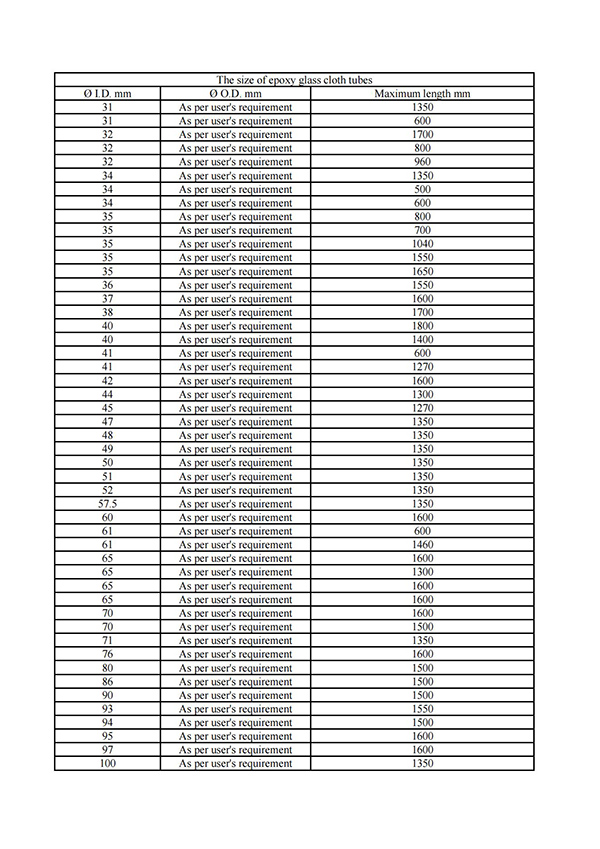

Dimension For Epoxy Glass Cloth Tubes

Production Equipment

EPGC tubes (7)
EPGC tubes (8)
